cmpnyinfo: the architecture
Introduction
I usually like to plan things through before I do it. Especially if I am working on a project like this. And there is a literal study revolving how to make a software, called software architecture. I tried to apply some concepts from it, in the process of planning how to design my website.
Software Architecture Pattern
There are several software architecture patterns, which I am not going to explain in this post (maybe in a seperate post later). But I am going to explain what pattern I chose to use for my website. It’s modular monolithic architecture.
What is modular monolithic architecture?
It is basically when you
- seperate parts of your software into differnet modules that does certain things
- and those modules are all built in one giant monolithic service, in this case, an EC2 instance.
How it applies to my website
This architecture, in my opinion, suits bests to my website, for the following reasons.
- It is simple
- My website doesn’t really have a lot of features. And I am not planning to make it that way.
- So putting everything together in a monolithic instance wouldn’t cause a huge mess.
- I don’t have to take an extra step and use the AWS’s ECS service to manage different EC2 container instances. Since I am just running one EC2 instance.
- As a result, simpler design! Less complexity!
- A certain level of seperation

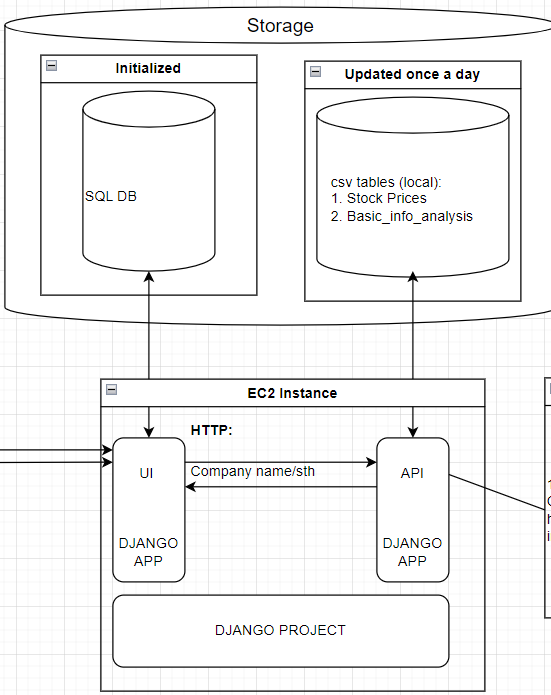

- When you look at the diagram below, you can see how the API module and the Web-app modules has their own data to access.
- It is not exactly seperated in terms of having a seperate database, or a seperate server, or instance for it, BUT I am planning not to write a single line of code that accesses those data of other application. This way, they are seperated.
Diagram
